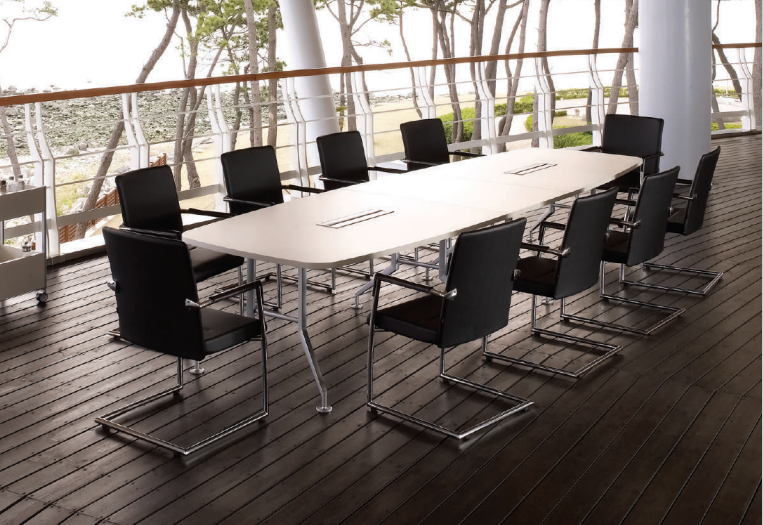

The FRX series blends straight and curved lines in a
minimalist style. The combination type (Curved
configuration) allows you to configure your layout
freely with a variety of tabletop options. The FRX
conference system provides you with exceptional
flexibility.
Each unit consists of two sockets
and two LAN ports. A clamp
facilitates installation and removal
for maximum user convenience.
The ducts are a neat and easy way
to connect and lay out the
necessary wiring to support your
conference activities.

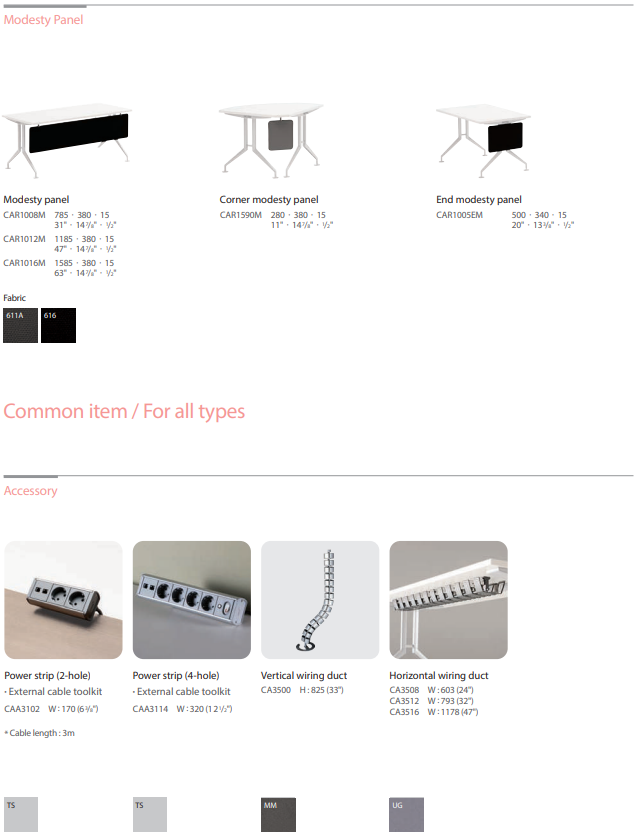

The unconventional fabric modesty
panels are available in an assortment
of colors, and the corners have been
rounded off for an enhanced
appearance. The fabric is easily
removed for cleaning or replacement.
The end modesty panel ensures
personal privacy when the
conference modules are configured
in a Open-ended layout.

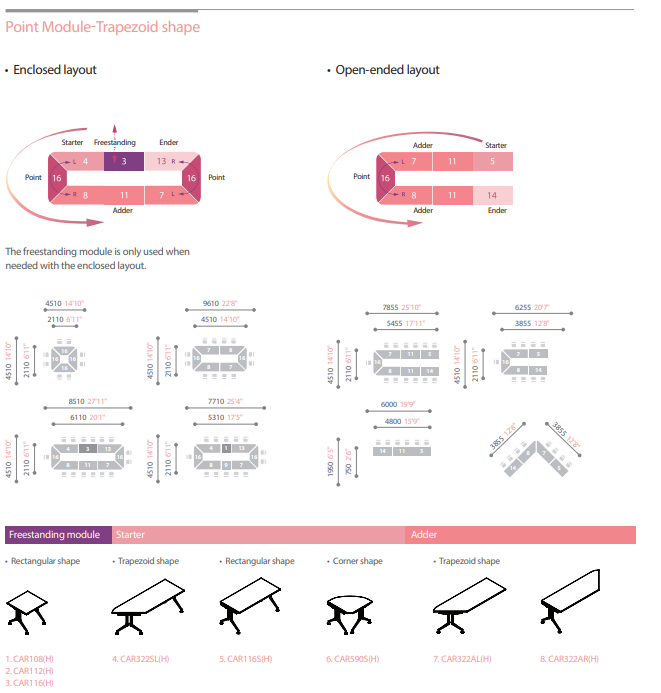

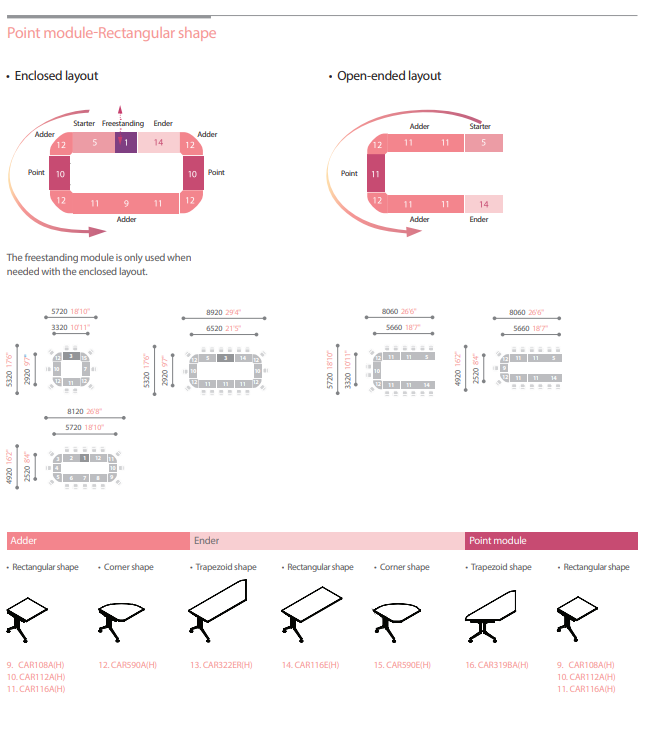

Layout

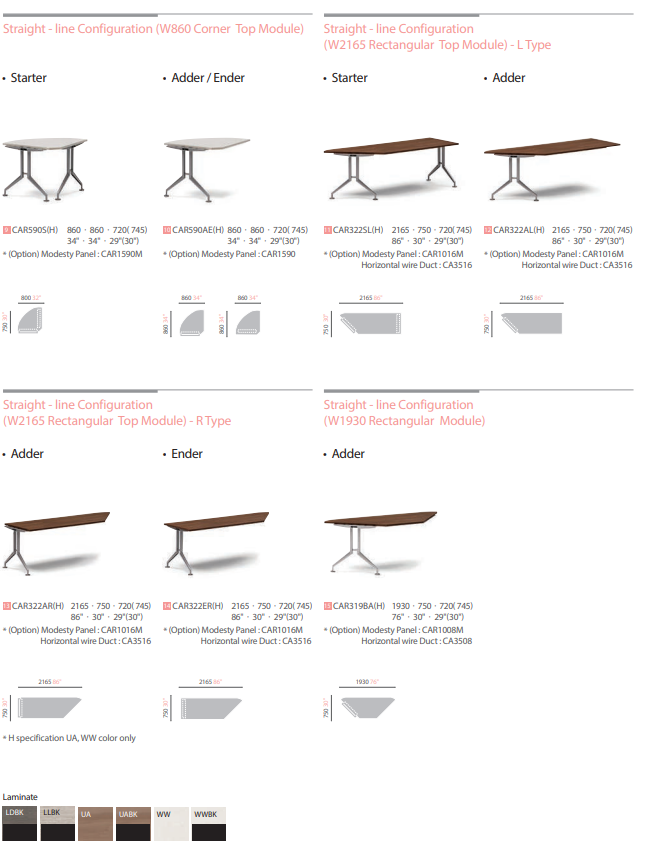

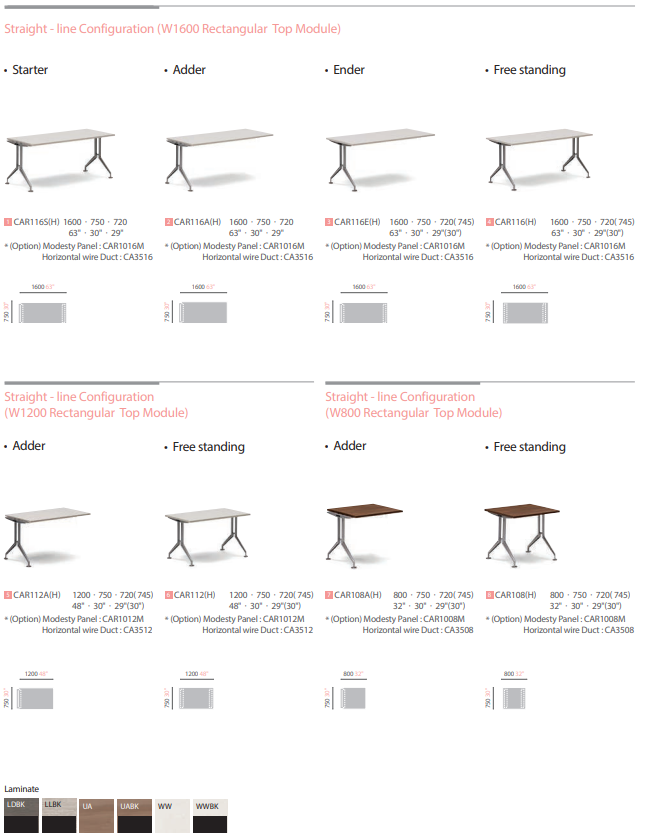

Combining type / Straight-line configuration
· The dimensions refer to the floor space needed to accommodate each conference system.
· They include a 1,200mm wide access space around the periphery.
· Individual modules may not be used alone; they must be combined together.
· The combined conference system is always laid out in a counterclockwise direction.
· The corner shape module only connects with the rectangular shape module.
· Among the adders, the rectangular shape module may also be used as a point module.
